| Description | Unité | Valeur |
|---|---|---|
| UNITÉ D'INJECTION | ||
| Volume de tir | cm3 | 1094 |
| Poids du tir | g | 996 |
| Vitesse de tir | mm/s | 426 |
| Diamètre de la vis | mm | 65 |
| Pression d'injection | MPa | 219 |
| Rapport L:D de vis | -- | 23 |
| UNITÉ DE SERRAGE | ||
| Force de serrage | kN | 4500 |
| Coup d'ouverture | mm | 1300 |
| Espace entre les barres de liaison | mm x mm | 840 x 830 |
| Épaisseur du moule(min) | mm | 350 |
| Épaisseur du moule(max) | mm | 900 |
| Course d'éjection hydraulique | mm | 250 |
| Force d'éjection hydraulique | kN | 160 |
| UNITÉ DE PUISSANCE | ||
| Moteur de pompe | kW | 74 |
| Capacité de chauffage | kW | 26 |
| GÉNÉRAL | ||
| Capacité du réservoir d'huile | L | 1000 |

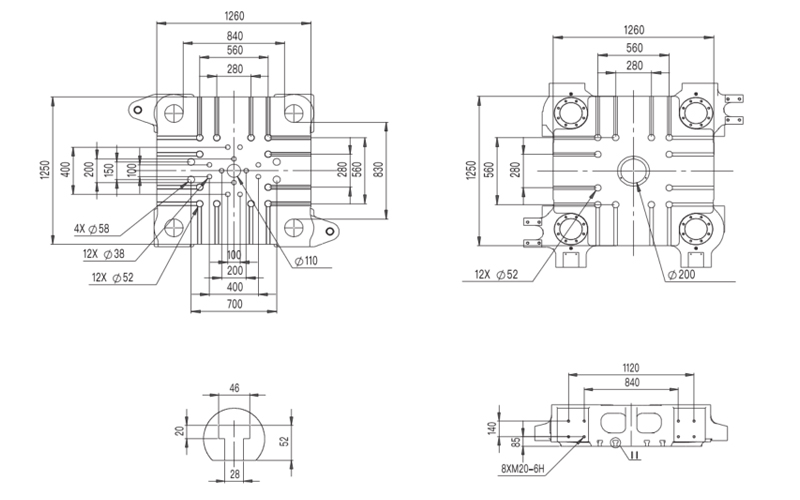

Platen Dimension
Machine Dimmension
| # | Value |
|---|---|
| A | 2422 mm |
| B | 1222 mm |
| C | 1200 mm |
| D | 1082 mm |
| E | 1082 mm |
| F | 1650 mm |
| G | 1300 mm |
| H | 1461 mm |
| I | 2155 mm |
| J | 1500 mm |
| K | 1690 mm |
| L | 2235 mm |
| M | 2062 mm |
| N | 2055 mm |
Why is SWITEK your best OEM/ODM partner of IML robot?
With more robots manufacturers joint the competition of IML solutions, you'll be able to find many new brands of IML robot from China each year in the Plastic manchinery related exhibitions in your Countries. With so many IML solutions available, how to choose the one best suitable to your project and who would be your reliable partner to provide you with an OEM/ODM service?
As an project oriented injection automation system, IML robot is a custom made system according to the mold design, which made it a team work of R&D, purchasing and after service. And an experienced service team of IML system would be the key to a successful IML project.
With the first IML system on show Chinaplas 2010, SWITEK is now one of the largest IML solutions provider in China with an annual output of more than 200 sets of IML system delivered, we have a complete IML solutions of both top & side entry for IML containers/lids from 100ml to 33L paint buckets. We can not only provide an IML system according to your requirement but also custom make the colors of the IML robot.
For more information of IML robot OEM/ODM service, please feel free to contact Adams from SWITEK to get a reday to work IML system.
