| Description | Unité | Valeur |
|---|---|---|
| UNITÉ D'INJECTION | ||
| Volume de tir | cm3 | 3533 |
| Poids du tir | g | 3179 |
| Vitesse de tir | mm/s | 123 |
| Diamètre de la vis | mm | 100 |
| Pression d'injection | MPa | 143 |
| Rapport L:D de vis | -- | 19.8 |
| UNITÉ DE SERRAGE | ||
| Force de serrage | kN | 7200 |
| Coup d'ouverture | mm | 980 |
| Espace entre les barres de liaison | mm x mm | 970 x 920 |
| Épaisseur du moule(min) | mm | 400 |
| Épaisseur du moule(max) | mm | 950 |
| Course d'éjection hydraulique | mm | 280 |
| Force d'éjection hydraulique | kN | 210 |
| UNITÉ DE PUISSANCE | ||
| Moteur de pompe | kW | 84 |
| Capacité de chauffage | kW | 50.9 |
| GÉNÉRAL | ||
| Capacité du réservoir d'huile | L | 900 |

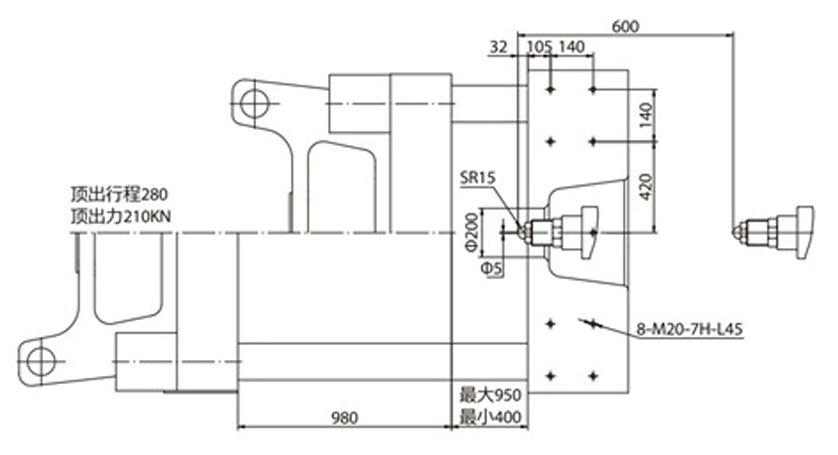

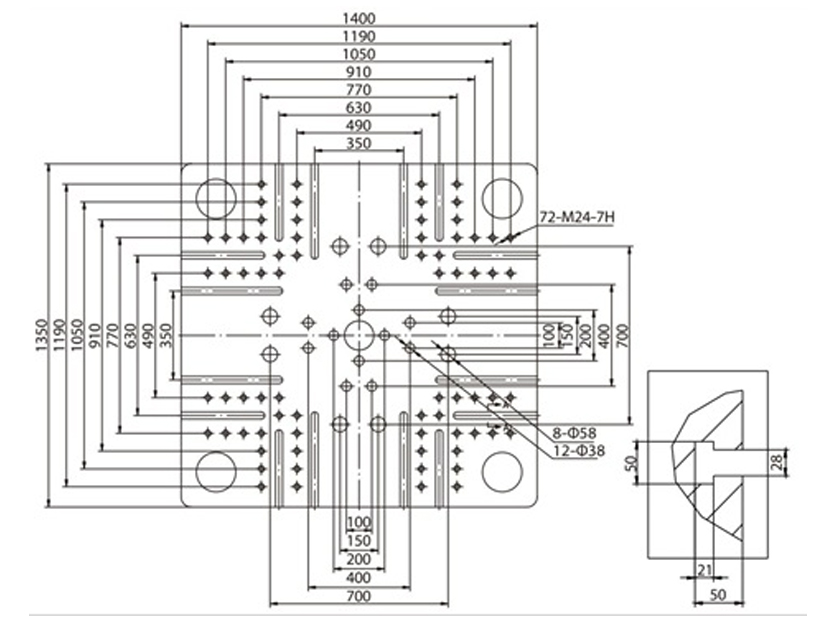

Platen Dimension

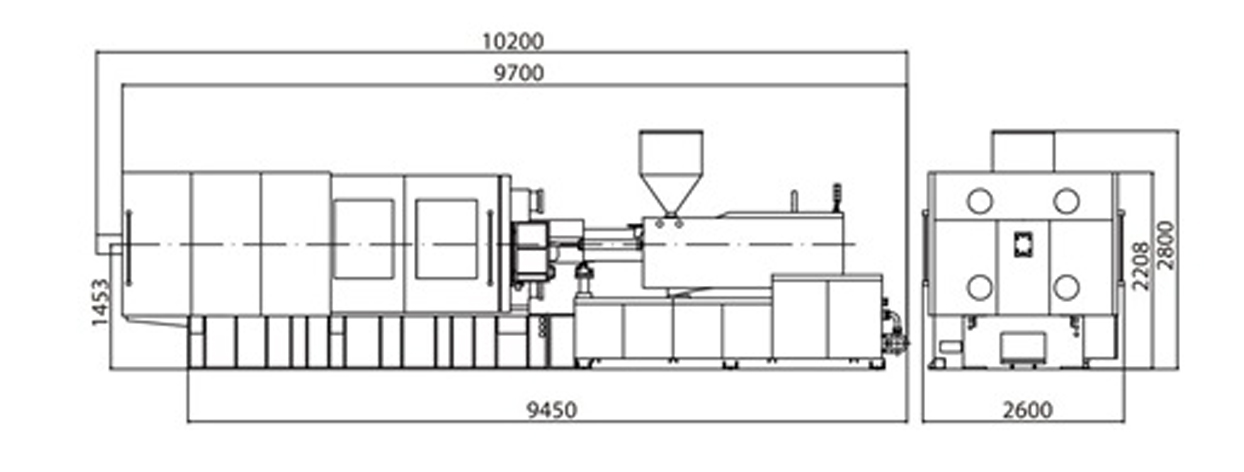

Machine Dimmension
What is a Picking Robot?
A picking robot in an injection project is a robotic arm which will pick the parts from the mould and have it placed on the conveyor or other automation system to have another processing. The projector will choose a picking robot according to the size of the injection molding machine, the injection cycle time, the weight of the parts etc to choose a picking robot.
Take the SWITEK hgih speed 3 axis servo robot SW7112DS as an example, with a pay load of 2kg and a dry cycle time of 3.3s only designed for injection molding machine ranging from 150Ton ~ 500Tone, it could be regarded as one of the best picking robot for the thin-wall containers production business with a picking capacity up to 8 cavities of 700ml cups, but if for the picking of a bumper it would not be suitable. Anyway, to choose a picking robot for your injection project, the key point would be:Actualités sur l'automatisation de l'injection à chaud
