| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 510 |
| Shot weight | g | 465 |
| Shot speed | mm/s | 517 |
| Screw diameter | mm | 57 |
| Injection pressure | MPa | 169 |
| Screw L:D ratio | -- | 24.4:1 |
| CLAMPING UNIT | ||
| Clamping force | kN | 4500 |
| Opening Stroke | mm | 680 |
| Space between tie bars | mm x mm | 730 x 660 |
| Mold thickness(min) | mm | 300 |
| Mold thickness(max) | mm | 750 |
| Hydraulic ejection stroke | mm | 160 |
| Hydraulic ejection force | kN | 77 |
| POWER UNIT | ||
| Pump motor | kW | 110 |
| Heating capacity | kW | 28.5 |
| GENERAL | ||
| Oil tank capacity | L | 625 |

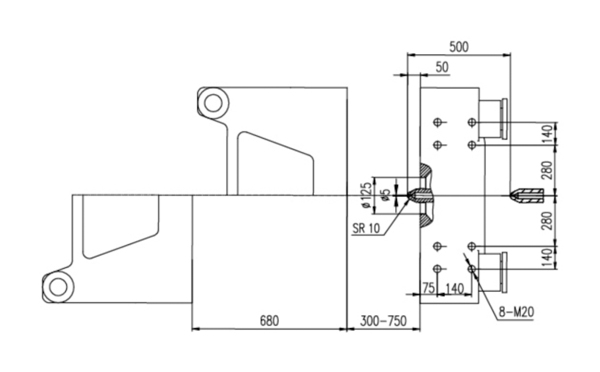

Robot Installation

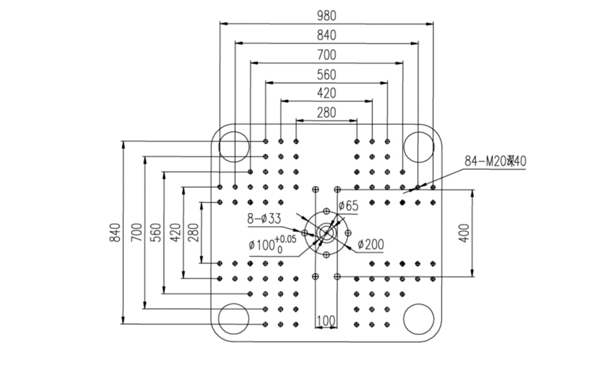

Platen Dimension
Machine Dimmension
| # | Value |
|---|---|
| A | 2147 mm |
| B | 8030 mm |
| C | 8110 mm |
| D | 2546 mm |
| E | 2018 mm |
Which Robot is the Best one for HaiTian 5th Generation of MA5300 Servo Injection Molding Machine?
MA Series of servo hydraulic energy-saving injection molding machine is the best selling products of Haitian group for the house hold production production. It now comes to the 5th generation of the technology and will bring the house hold products producers more possibility in their production.
The promoting video uplaunched on Youtube by Haitian group of the 5th generation MA Series injection molding machine is MA5300, which is a medium sized injection molding machine with a clamping force of 5300kN for the production of small and medium sized house hold products.
The robot for Haitian MA5300 will have two option. For the picking application of the parts SW6712DS-20 which as a payload up to 6kg would be an economic solution; while for projects of house hold products production with complex EOAT design say in mold insertion, SWITEK SW6715DS with a payload up to 15kg would be a better choice. And for projects of 3 plates mold or stack mold SWITEK will also provide double arms 5 axis servo injection robot.
For more information about SWITEK injection robot for HaiTian injection molding machine please contact Adams from SWITEK Automation, for a "Just in Need" proposal of injection robot selection.
