| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 299 |
| Shot weight | g | 267 |
| Shot speed | mm/s | 327 |
| Screw diameter | mm | 46 |
| Injection pressure | MPa | 189 |
| Screw L:D ratio | -- | 22 |
| CLAMPING UNIT | ||
| Clamping force | kN | 2680 |
| Opening Stroke | mm | 520 |
| Space between tie bars | mm x mm | 580 x 520 |
| Mold thickness(min) | mm | 230 |
| Mold thickness(max) | mm | 580 |
| Hydraulic ejection stroke | mm | 145 |
| Hydraulic ejection force | kN | 65 |
| POWER UNIT | ||
| Pump motor | kW | 60 |
| Heating capacity | kW | 14.2 |
| GENERAL | ||
| Oil tank capacity | L | 420 |

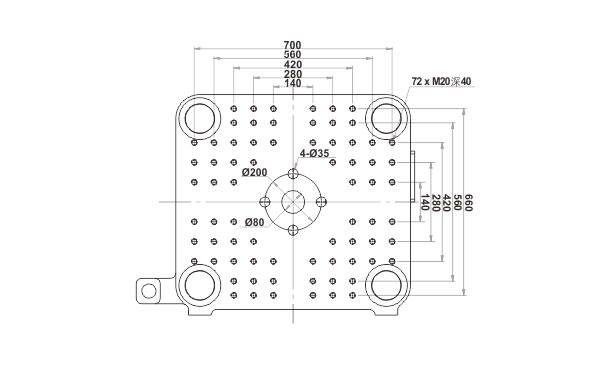

Platen Dimension

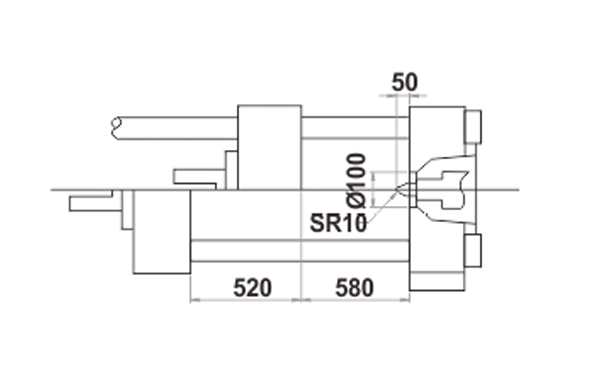

Machine Dimmension

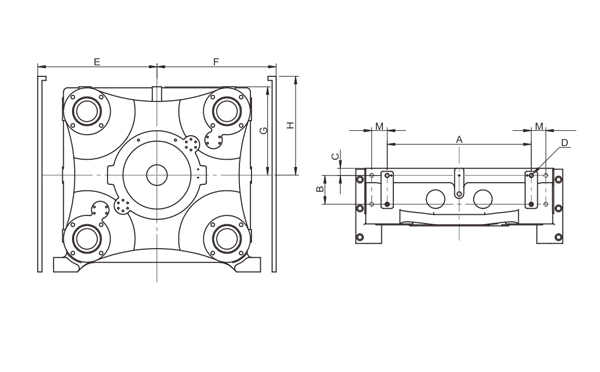

| # | Value |
|---|---|
| A | 700 mm |
| B | 140 mm |
| C | 35 mm |
| D | 4-M20*40 mm |
| E | 690 mm |
| F | 690 mm |
| G | 429 mm |
| H | 510 mm |
| M | / |
Why is IML Buckets a Perfect Substitution of Tin Paint Cans?
As a traditional packages for the paint, the tin can has a long history in the market as the container of the paints. But IML buckets is getting more and more popular with advantages below:
For any producers of Tin cans for paints is switching to IML paints buckets production, SWITEK will provide a free consultation of system integration, workshop layout design and others related to an IML project to provide you with a turn-key solutions of IML paints bucket production.
