KF460-S6 highspeed Injection Molding Machine

Machine Specification

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	594
Shot weight	g	552
Shot speed	mm/s	1033
Screw diameter	mm	55
Injection pressure	MPa	180
Screw L:D ratio	--	24
CLAMPING UNIT
Clamping force	kN	460
Opening Stroke	mm	600
Space between tie bars	mm x mm	690 x 670
Mold thickness(min)	mm	250
Mold thickness(max)	mm	670
Hydraulic ejection stroke	mm	150
Hydraulic ejection force	kN	77
POWER UNIT
Pump motor	kW	96
Heating capacity	kW	30.4
GENERAL
Oil tank capacity	L	1140

Machine Dimension

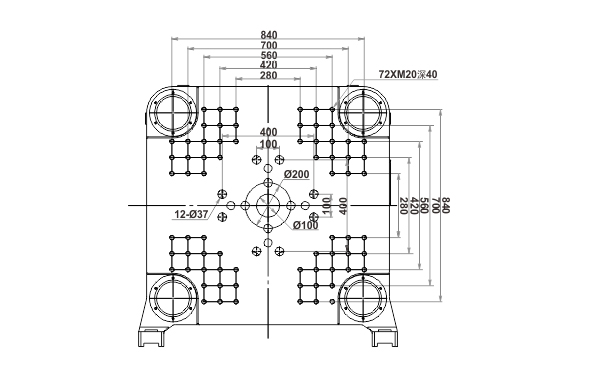

Platen Dimension

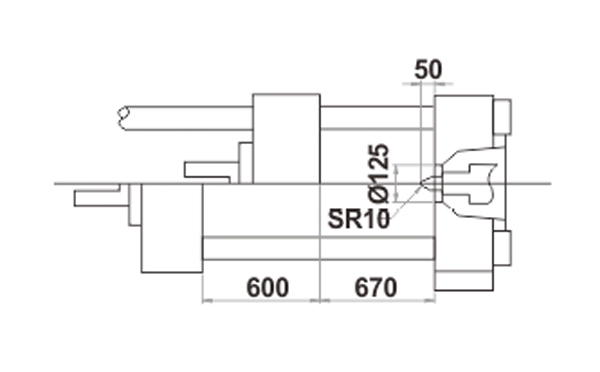

Machine Dimmension

#	Value
A	560 mm
B	140 mm
C	35 mm
D	8-M20*40 mm
E	810 mm
F	938 mm
G	530 mm
H	650 mm
M	/

Q & A

What Would be The Expectable Cycle Time In Production of 120ml Temper Evidence Cups With All Machineries Made In China?

With the advancement of technology, the injection machineries and automation solutions made in China are doing a much better job in thin-wall IML containers production. As for the production 120ml temper evidence cups for Yogurts, the best cycle time in a trial IML production of 6 cavities application with SWITEK SW8 Series IML robot and YIZUMI P380K3 high speed injection molding machine, the cycle time had been reduced to around 5.5s. Take the overall investment into consideration, it's an amazing bargin for the thin-wall IML containers producers in any world.
