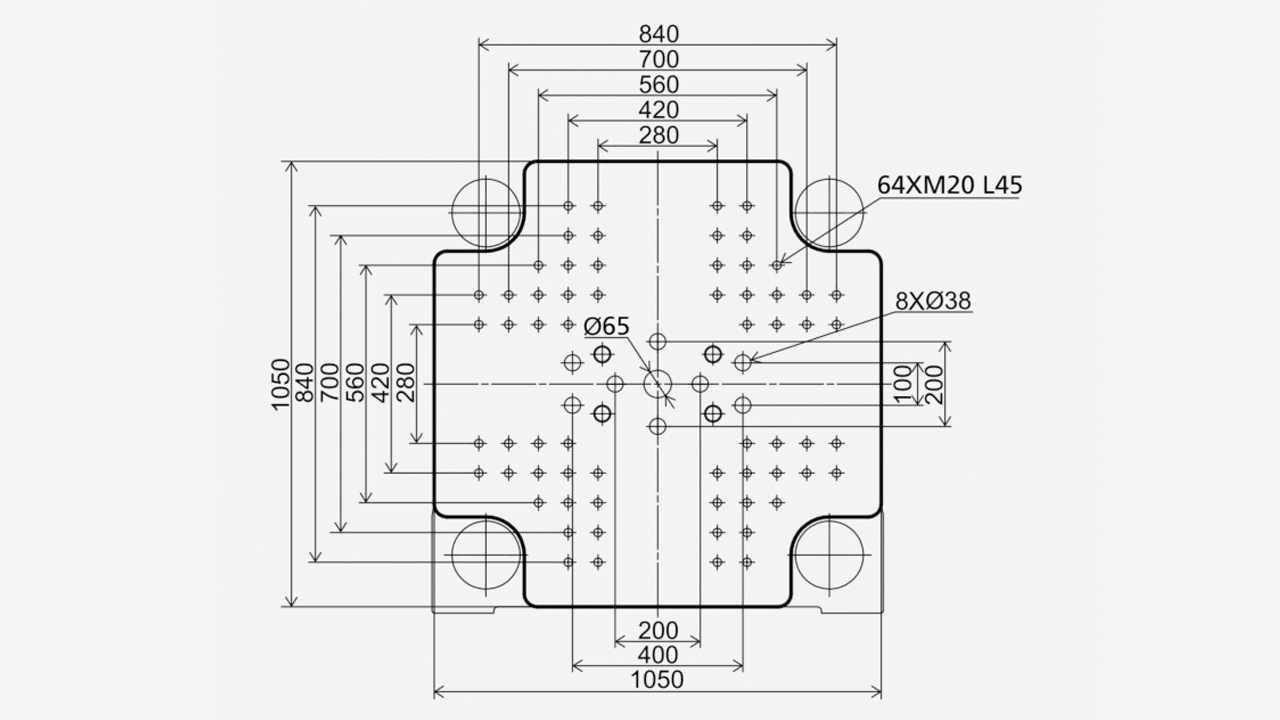

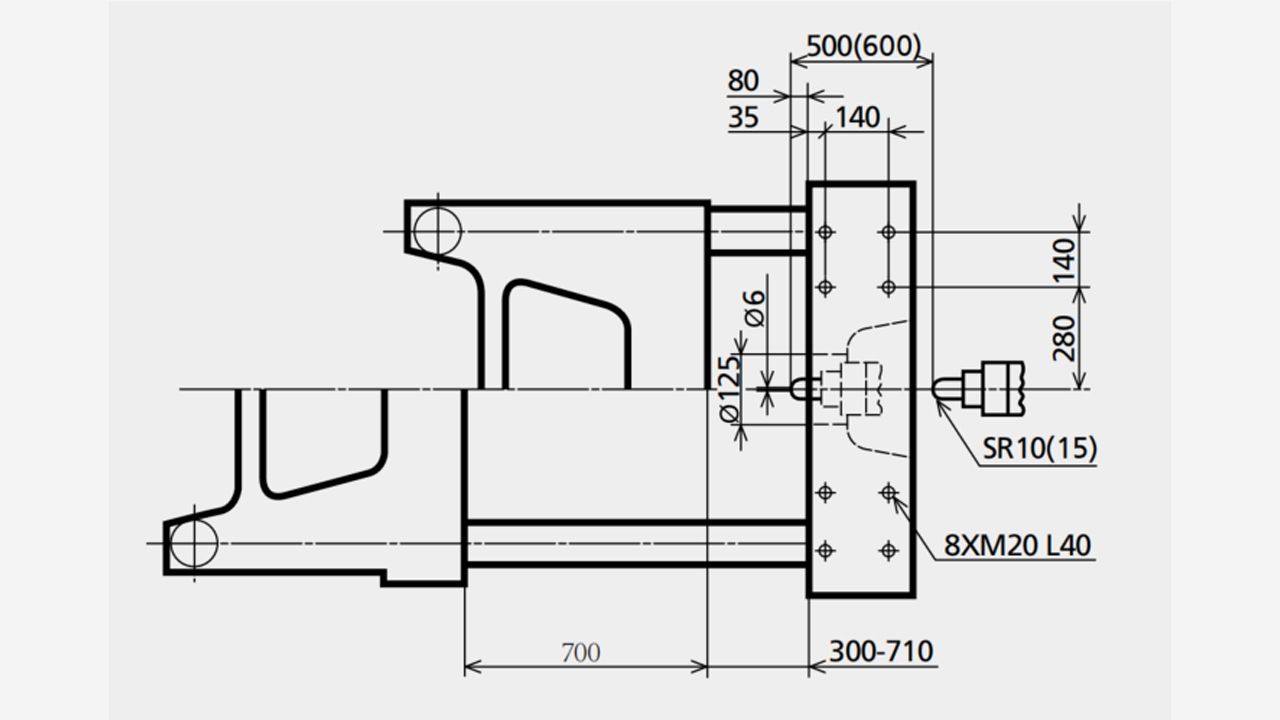

Platen Dimensions

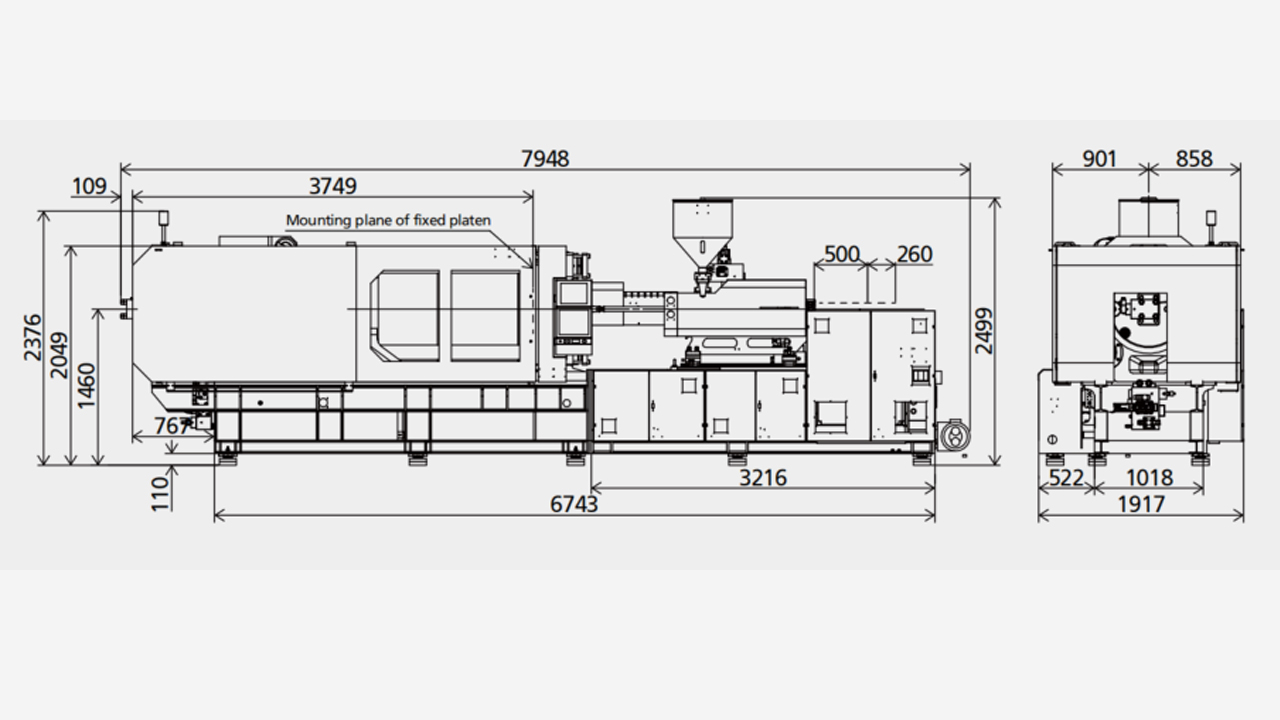

Machine Dimmension

As the world largest manufacturer of the injection molding machine, to have a HaiTian injection molding machine for your IML Silicone cartridge tube is no doubt a guarantee of the continued localized service and reliable system performance. For an IML solutions of Silicone cartridge tubes with a daily output of around 26,000pcs of IML Silicone cartridge tubes, the recommend injection molding machine would be MA3600, below parameters of it for your reference:

• Clamping Force: 3600KN (360T)
• Opening Stroke: 660mm (To minimize the machine, we'll choose to have the IML Silicone cartridge tube to be free dropped instead of picked by robot, and the IML robot will insert the label of the Silicone cartridge tubes only.)
• Min-Max Mold Height: 250 ~ 710mm
• Space Between Tia Bars: 710 x 710mm

8 Cavities Sillicone Cartridge Tubes Side Entry IML Solutions

With patented servo hydraulic drive system, Hiatian MARS series servo drive energy-saving injection molding machine is one of the best choice for the production of IML Silicone cartridge tubes which the total cycle time would be around 25s. With the custom made IML robot for Silicone cartridge tube by SWITEK you'll get price smart but reliable solutions of 8 cavities side entry IML Silicone cartridge solutions.

With the first IML robot delivered in 2009, SWITEK has built up sound relation with the key injection molding machine manufacturer and mold maker to provide you with a turn-key IML solutions of Silicone cartridge tubes.
