P350K3A Highspeed Injection Molding Machine

Machine Specification

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	442
Shot weight	g	406
Shot speed	mm/s	350
Screw diameter	mm	50
Injection pressure	MPa	207
Screw L:D ratio	--	24:1
CLAMPING UNIT
Clamping force	kN	3500
Opening Stroke	mm	610
Space between tie bars	mm x mm	630 x 630
Mold thickness(min)	mm	250
Mold thickness(max)	mm	650
Hydraulic ejection stroke	mm	180
Hydraulic ejection force	kN	77
POWER UNIT
Pump motor	kW	71
Heating capacity	kW	20
GENERAL
Oil tank capacity	L	600

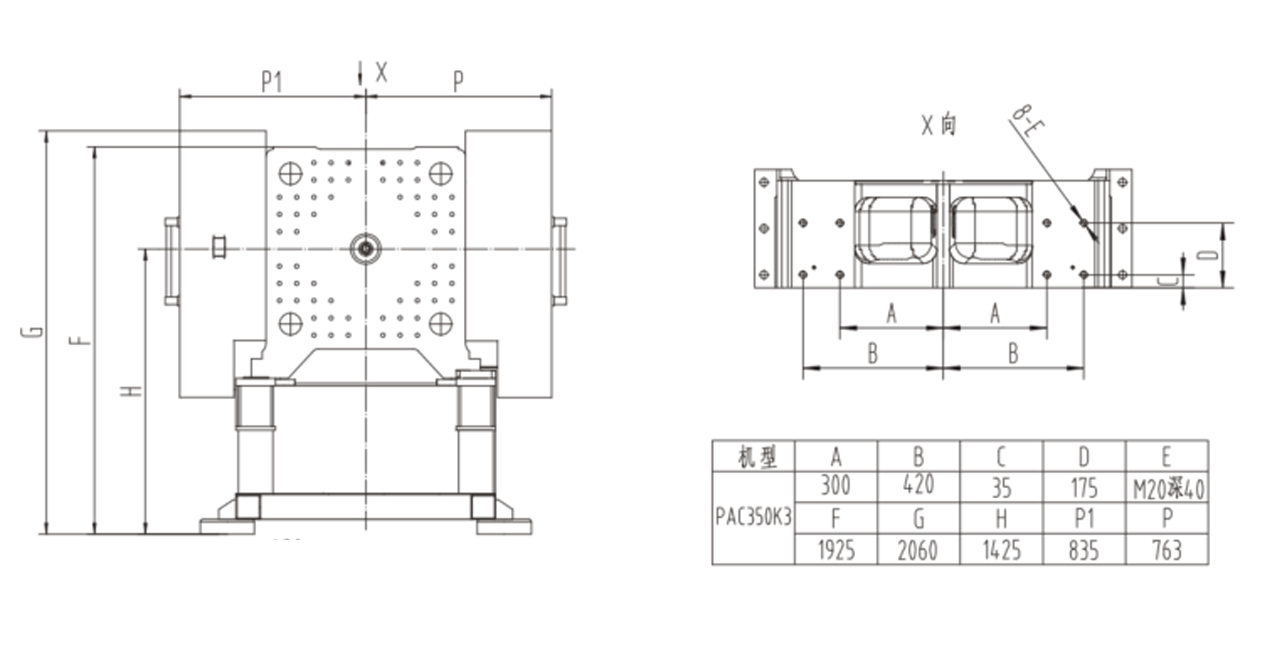

Machine Dimension

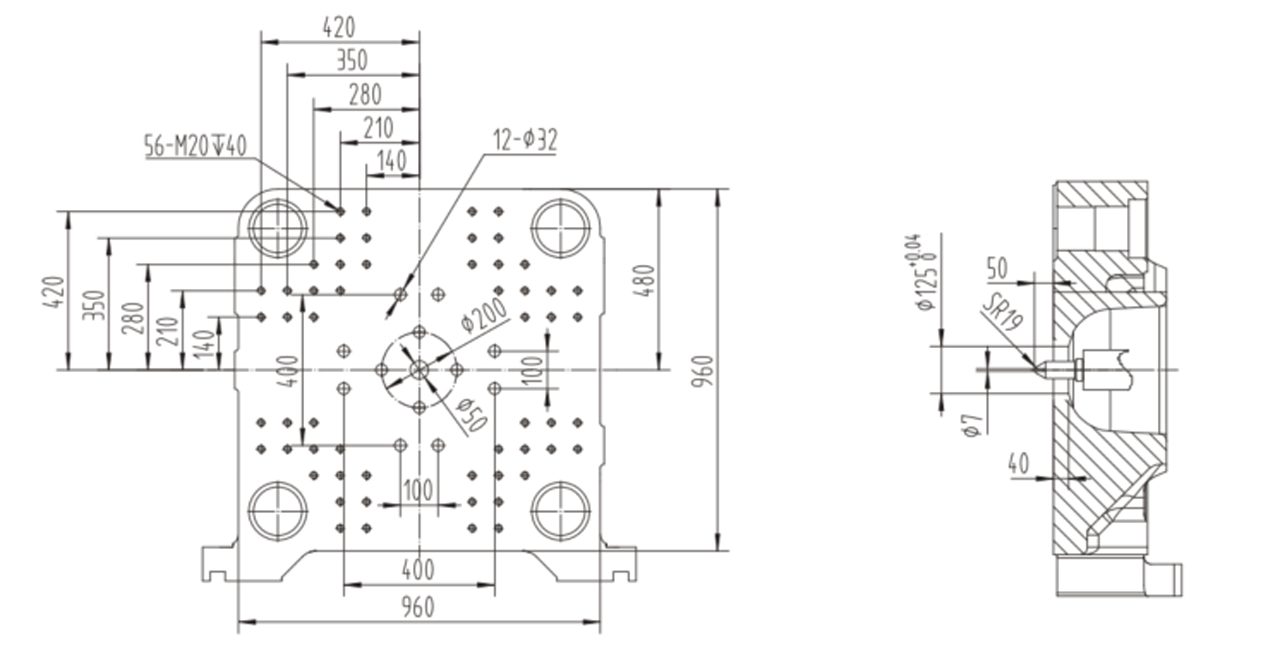

Platen Dimension

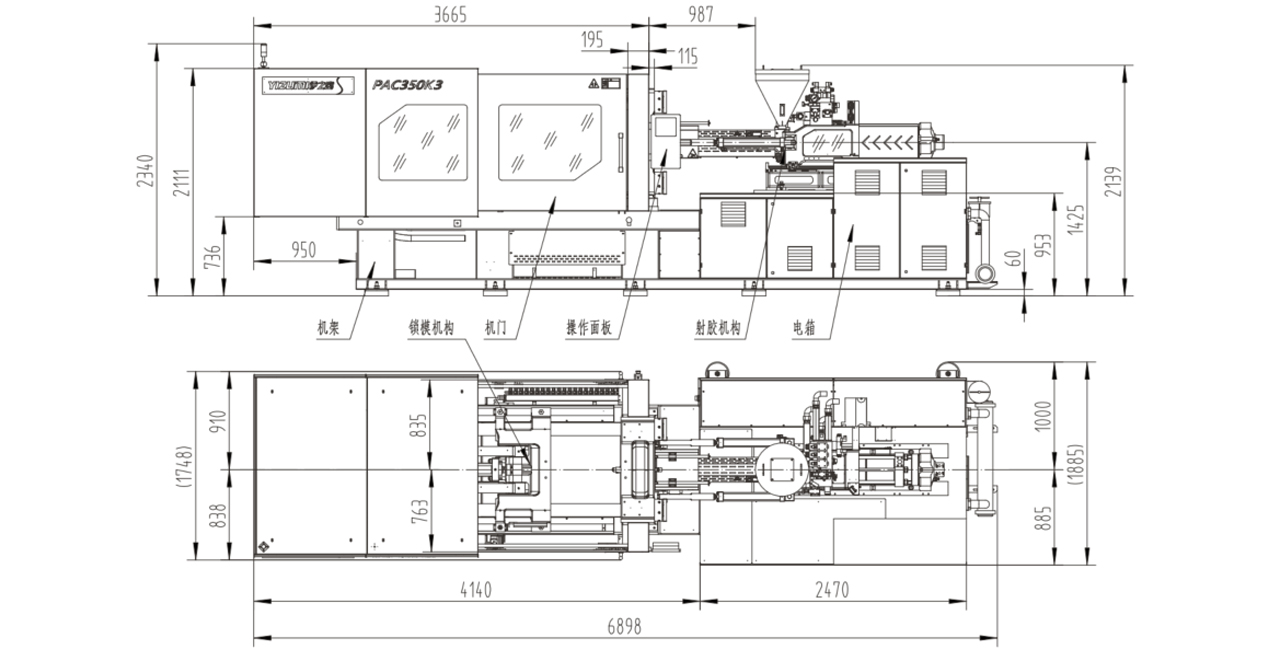

Machine Dimmension

Q & A

For a Container with a Height of 100mm, What Would be the Minimal Opening Stroke of the Injection Molding Machine?

As we know, for the IML production of a container, the robot will do the actions of parts picking and label inserting in the mold, which means that the system will request a much larger in mold space compared to non-IML production. While selecting an injection molding machine for your IML project, the opening stroke of the injection molding machine would be a very important parameter to be taken into consideration. The basic formular for the opening stoke caculation would be heigh of the parts x 3 + 150mm, the potential injection molding machine must have a larger opening stroke, or the robot may not able to pick the parts and insert the labels symtaneously.
