Abstract

The silicone cartridge tube is a deep cavities containers for silicone cartridge. More and more producers of the silicone cartridge producers are now choosing the new IML technology as a substitution of off print technology in their tubes production. With an opening stroke of 660mm, the HaiTian MA3600/2250G is an ideal choice for an eight cavities silicone cartridge tubes IML production system.

What Are the Features of Haitian MA3600/2250G for Silicone Cartridge Tubes IML Production?

• Multi-point Ejection System

  A great advantage for molds with different ejection requirements

• Various Plasticizing Screws

  A wide range of screw designs is available according to your material processing requirements

• Automatic Lubicating System

  The clamping unit is optimized for precise lubrication of all moving parts

• High Performance Servo Motor

  Highly responsive with closed loop control for stability and precision

• Excellent Injection Performance

  Twin-cylinder injection unit with strong guide system ensures durability and precision during the injection/charging stages of the molding cycle

• Servo Hydraulic Drive System

  The drive system utilizes a rotary encoder with pressure transducer for closed control for all machine movements. The precision and repeatability guarantees consistent molding parameters during the complete molding cycle. Fast speed and pressure changes provide a broad processing window for the molded part.

Molds Designed for One Set of Silicone Cartridge Tubes

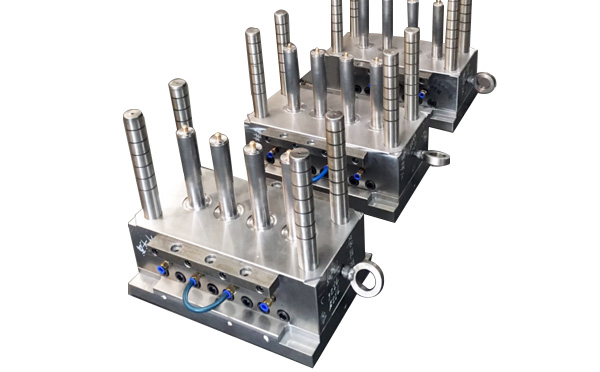

4 Cavities Silicone Cartridge Tube's Body Mold

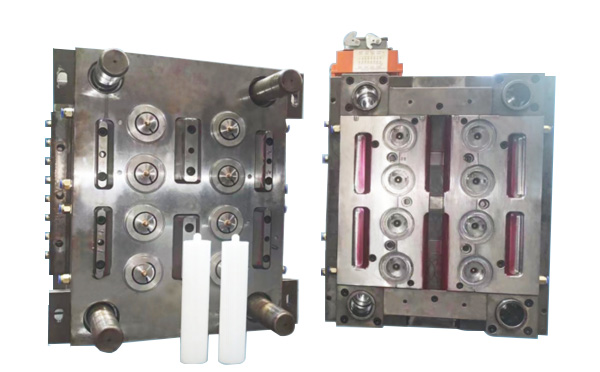

8 Cavities Silicone Cartridge Tube's Body Mold

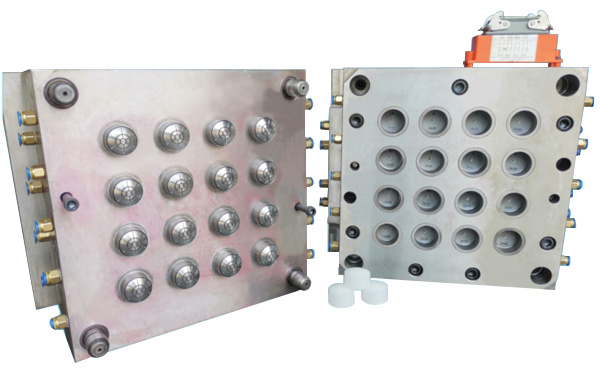

16 Cavities Silicone Cartridge Tubes Bottom Mold

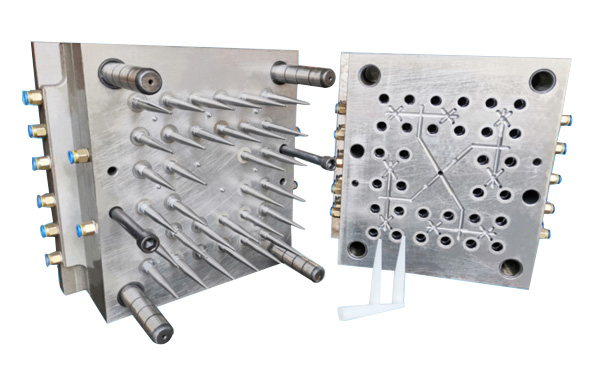

32 Cavities Silicone Cartridge Tube'S Cap Mold

A complete set of the silicone tube will include a body, a bottom and a cap, so for producers of IML silicone cartridge tubes will also need injection molding machines for the silicone tube's body, bottom and caps production. Below are proposals of complete set of molds for silicone cartridge tubes production.

• Silicone Cartridge Tube's Body: With Haitian MA3600/2250G the producer of Silicone cartridge tubes producer can choose a 8 cavities mold to maximize the productivity of the machine; Or Haitian MA3000/1800G for a mold of 4 cavities.
• Silicone Cartridge Tube's Bottom: A 16 cavities of mold design would be a price smart solution with injection molding machine of HaiTian MA2000/770G.
• Silicone Cartridge Tube's Caps: A 32 cavities of mold design for the silicone cartridge tube's caps will help to maximize the productivity of Haitian MA2000/770G.

IML Solutions for the Silicone Cartridge Tubes IML Production

• Top Entry IML Solution or Side Entry IML Solutions: For a mold design of 4 cavities the top entry IML solution for the silicone cartridge tubes IML production would be an economic solution; But for 8 cavities mold design a side entry IML Solution would be a proposed solution for a stable production of the IML silicone cartridge tubes.
• Free Dropping or Robot Picking: As a deep cavity product, it will increase the in mold time to have the IML silicone tubes robotic arm picked and placed on the conveyor but will better protect the produced IML silicone cartridge tubes; while the free dropping solution will have better production efficiency with a much lower system purchasing cost. The producer of the IML silicone cartridge tubes can choose a solution according to the budget and requirements of the project.
